VPLog-i/VPLog-i-R (RT Marketplace)

Contact

Location Red Deer/Available to ship, CA.

Phone

1 (855) 368-7438

Web + Email https://tridoes.com/

info@tridoes.com

Description

Ad posted: August 12, 2026, by:

CENTURION CANADA RENTALS & SERVICES

Trido Energy Services - Pump, compression, and solar applications to reduce product costs and eliminate methane on production sites. Based and produced locally in Red Deer Alberta.

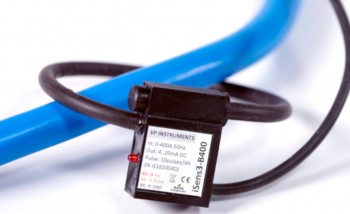

A Rogowski coil current logger that wraps around a power cable for instant AC current measurement — no wiring, no shutdown. The VPLog-i outputs 4–20mA and pulse; the VPLog-i-R outputs RS485 Modbus RTU. Ideal for air audits and short-term measurements, but also suitable for permanent installation. One size fits all on the VPLog-i-R model.

The VPLog-i is a Rogowski type coil that measures AC currents (true-RMS on a single-phase power cable). The VPLog-i is very easy to use; just wrap around one of the three-phase power cables and close the snap fitting. The LED provides feedback. The VPLog-i offers the best solution for power measurements in audits. The sensor can also be used for permanent installation. In this case, cos(phi) has to be estimated, and voltage needs to be measured once. These parameters are used to calculate the estimated power consumption. In VPVision, you simply enter these numbers in the power meter configuration wizard. The VPLog-i is available in two models, where the main difference is the output signal. The VPLog-i offers a 4..20mA and pulse output. The VPLog-i-R features an RS485 (Modbus RTU) output.

VPLog-i-R Configuration Software

Configure the Modbus parameters of your VPLog-i-R with our easy to use VPLog-i-R Configuration software. This software is free to download from www.vpinstruments.com. Just connect your VPLog-i-R to your PC via VPInstruments’ JB5 Interface Kit and VPLog-i-R connector, and configure the Modbus address, parity, baud rate and stop-bits of your VPLog-i-R.

Highlights

Snap-around Rogowski coil — installs in seconds, no cable cutting or panel shutdown

True RMS current measurement

VPLog-i: 4–20mA + pulse output, 5 current range models (100A–1500A)

VPLog-i-R: RS485 Modbus RTU output, single model covers 100–1600A

LED feedback — power connection (VPLog-i) or Modbus communication (VPLog-i-R)

For both short-term audits and permanent installation

Free VPLog-i-R Configuration Software for Modbus parameter setup

Integrates with VPVision — enter cos(phi) and voltage once in the configuration wizard

±1% full scale accuracy

1 Year Warranty

Our products are ready ready to ship across Canada.

Learn more on www.tridoes.com or by contacting us directly for your customized quote.

Price: Call for your custom quote
