VPInstruments 3 Phase Power Meter (RT Marketplace)

Contact

Location Red Deer/Available to ship, CA.

Phone

1 (855) 368-7438

Web + Email https://tridoes.com/

info@tridoes.com

Description

Ad posted: August 12, 2026, by:

CENTURION CANADA RENTALS & SERVICES

Trido Energy Services - Pump, compression, and solar applications to reduce product costs and eliminate methane on production sites. Based and produced locally in Red Deer Alberta.

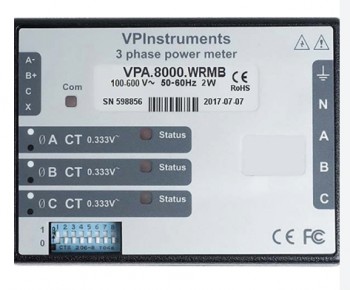

A true RMS power meter for permanent installation on single or three-phase systems from 100–600 VAC. Measures voltage, current, real power, cos(phi), and additional electrical parameters across all three phases via RS485 Modbus RTU. When combined with a VPFlowScope flow meter, enables real-time compressor efficiency monitoring.

Monitoring energy usage is a powerful tool and key to maximizing savings across your facility. Energy consumption data provides insight for accurate cost allocation and identifies areas to lower consumption and increase performance. Complete power metering solutions let you keep a close eye on all your energy consumers circuit by circuit — compressed air systems, vacuum systems, HVAC, cooling water stations, lighting, and more.

The VPInstruments 3 Phase Power Meter measures voltage and current across all three phases, providing power, voltage, current, cos(phi), and many additional electrical parameters via RS485 Modbus RTU. The Modbus interface allows easy connection to any monitoring system, and when combined with one or more flow meters, enables real-time compressor efficiency monitoring.

Unlike current-only loggers, the 3 Phase Power Meter measures both voltage and current for each phase, delivering high-accuracy true power consumption data. It is recommended for permanent installations where measurement accuracy and continuous monitoring are required.

Highlights

True RMS power measurement — single phase or three phase

One model covers all nominal voltages 100–600 VAC, 50/60 Hz

Wye and delta configurations in one unit

RS485 Modbus RTU output — connects directly to VPVision or any BMS/SCADA

0.3333 VAC input for current transformers (CT) — compatible with VPInstruments CTs or any standard 0.3333 VAC output CT

LED indicators for CT status and serial communication

Fully configurable via Modbus

Self-powered from measured voltage (<2W) — no separate power supply required

For permanent installation

1 Year Warranty

Power measurements combined with flow measurements revealed compressor efficiency ranging 7–8 kWh/m³/min versus a possible 6.18 kWh/m³/min — identifying a 15% savings potential.

Our products are ready ready to ship across Canada.

Learn more on www.tridoes.com or by contacting us directly for your customized quote.

Price: Call for your custom quote
