VPFlowScope Probe (RT Marketplace)

Contact

Location Red Deer/Available to ship, CA.

Phone

1 (855) 368-7438

Web + Email https://tridoes.com/

info@tridoes.com

Description

Ad posted: August 12, 2026, by:

CENTURION CANADA RENTALS & SERVICES

Trido Energy Services - Pump, compression, and solar applications to reduce product costs and eliminate methane on production sites. Based and produced locally in Red Deer Alberta.

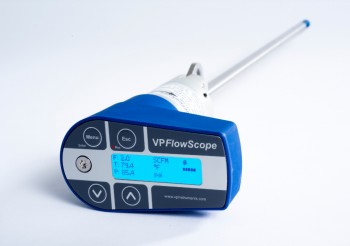

A 4-in-1 insertion-style thermal mass flow meter measuring compressed air flow, pressure, temperature, and total consumption simultaneously. Compatible with pipe sizes from 2" to 20", making it the ideal tool for both supply-side and demand-side monitoring in oilfield instrument air and industrial gas systems.

The VPFlowScope® is the measurement tool for dry compressed air and other technical gases like nitrogen, carbon dioxide and argon. The VPFlowScope Probe measures thermal mass flow, pressure, temperature and total flow simultaneously.

The VPFlowScope Probe can be used in various pipe diameters, which makes it the perfect solution for measuring of both the supply side and demand side of compressed air systems. The flow meter shows you where, when and how much air is used in order to allocate cost and subsequently to save money and energy.

The bright blue LCD display provides real-time information and with the built-in data logger, you can record for certain periods of time. Combine this with our VPStudio software on your PC and you can use this information to process data, print reports and analyze where and how exactly you can save.

Power of combined measurement

Get the complete picture by measuring flow, pressure and temperature simultaneously. Examples are: pressure drop caused by excessive flow, flow & temperature measurement combination downstream a refrigerant dryer, investigation if a machine can use less air at a lower pressure.

Bi-directional flow measurement

Bi-directional flow occurs frequently in compressed air systems, examples are in ring networks, at receivers in case of multiple compressed rooms, overseen branches or a leaking non-return valve. Discover the actual consumption and avoid mis-readings with VPFlowScope bi-directional flow measurement option.

Proprietary safety cable

We value your safety while you install your flow meter under pressurized conditions. The safety cable prevents unintended launching of the flow meter. As an extra benefit, the flow meter remains better in its position over time.

Display Module

The VPFlowScope Probe is available in several versions: without display (with connector cap) (D2), with display module (D10), and with display module and integrated data logger (D11).

The display provides real-time information that can be recorded with the optional data logger. The display is reversible and shows all information on three lines, which are fully configurable. You can choose from SI and Imperial display units. The data logger offers 2 million data points, which makes recording as easy as taking pictures. This is enough storage to measure flow, pressure and temperature once per second for more than a week.

Highlights

4-in-1 sensor: flow, pressure, temperature and total flow

Bi-directional flow measurement (optional)

Patented Thermabridge™ technology for dry, clean gas measurements

Standard RS485, 4..20mA and pulse output

3-line LCD display (optional) with real-time information and configuration keys.

Built-in data logger with 2 million points (optional)

1 Year Warranty

Our products are ready ready to ship across Canada.

Learn more on www.tridoes.com or by contacting us directly for your customized quote.

Price: Call for your custom quote
