Description

Ad posted: August 12, 2026, by:

CENTURION CANADA RENTALS & SERVICES

Trido Energy Services - Pump, compression, and solar applications to reduce product costs and eliminate methane on production sites. Based and produced locally in Red Deer Alberta.

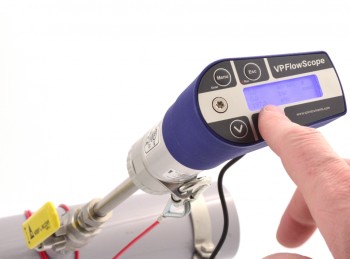

The patented VPFlowScope DP is the only insertion-style flow meter built for supply-side measurements in 100% saturated compressed air conditions. A 4-in-1 differential pressure sensor measuring bi-directional flow, pressure, temperature, and total flow simultaneously — installable under pressure without shutting down your compressor.

The patented VPFlowScope® DP is the ultimate measurement tool for saturated compressed air flow measurements. This differential pressure flow sensor measures bi-directional flow, pressure, temperature and total flow simultaneously. Its unique design enables you to take measurements in the discharge pipe of any compressor under 100% saturated conditions. With the VPFlowScope DP you can measure the performance or efficiency of your compressor. Furthermore, you can measure compressor contribution of the total compressed air supply.

The VPFlowScope DP is an insertion type flow meter, so you can use one device for various pipe diameters. The bright blue LCD display provides real-time information and with the built-in data logger, you can record for certain periods of time. Combine this with our VPStudio software on your PC and you can use this information to process data, print reports and analyze where and how exactly you can save.

Insertion type flow meter can be installed under pressure

Your compressed air supply is often vital for your 24/7 production process. You can install the VPFlowScope DP under pressurized conditions without stopping your compressor.

Bi-directional flow measurement

Bi-directional flow occurs frequently in compressed air systems, examples are in ring networks, at receivers in case of multiple compressed rooms, overseen branches or a leaking non-return valve. Discover the actual consumption and avoid mis-readings with the built-in bi-directional sensitivity.

Power of combined measurement

Get the complete picture by measuring flow, pressure and temperature simultaneously. Examples are: pressure drop caused by excessive flow, flow & temperature measurement combined downstream of a refrigerant dryer, and to get to know the true delivery of your compressors.

Proprietary safety cable

We value your safety while you install your flow meter under pressurized conditions. The safety cable prevents unintended launching of the flow meter. As an extra benefit, the flow meter remains better in its position over time.

Differential pressure vs. thermal mass

The range of thermal mass flow technology is superior to differential pressure technology. Therefore, differential pressure meters should not be used for leakage monitoring. They are intended for use in high velocity applications where there is a continuous flow over a minimum value, such as compressor efficiency monitoring.

Display module

The VPFlowScope DP is available in several versions: without display (with connector cap) (D2), with display module (D10), and with display module and integrated data logger (D11).

The display provides real-time information that can be recorded with the optional data logger. The display is reversible and shows all information on three lines, which are fully configurable. You can choose from SI and Imperial display units. The data logger offers 2 million data points, which makes recording as easy as taking pictures. This is enough storage to measure flow, pressure and temperature once per second for more than a week.

Highlights

For saturated compressed air measurements, can handle droplets of condensate

4-in-1 sensor: Bi-directional flow, pressure, temperature and total flow

Differential pressure flow measurement

Standard RS485 (Modbus RTU), 4..20mA and pulse output

3-line display (optional) with real-time information and configuration keys

Built-in data logger with 2 million points (optional)

1 Year Warranty

Our products are ready ready to ship across Canada.

Learn more on www.tridoes.com or by contacting us directly for your customized quote.

Price: Call for your custom quote
